一、產品簡介
I. Product  Introduction

高溫高壓無氰解吸電解裝置是采用新技術、新工藝，應用于黃金生產中處理載金炭的新型、高效產品。該裝置對于黃金礦山炭漿廠和堆浸廠產出的載金炭都能很好的進行解吸，產出黃金。該裝置自動化程度高，技術指標先進，設備質量好，操作簡單易行，設備運行特別穩定可靠、安全。產品已銷售到我國20多個省、并出口俄羅斯、緬甸、蒙古國、朝鮮。

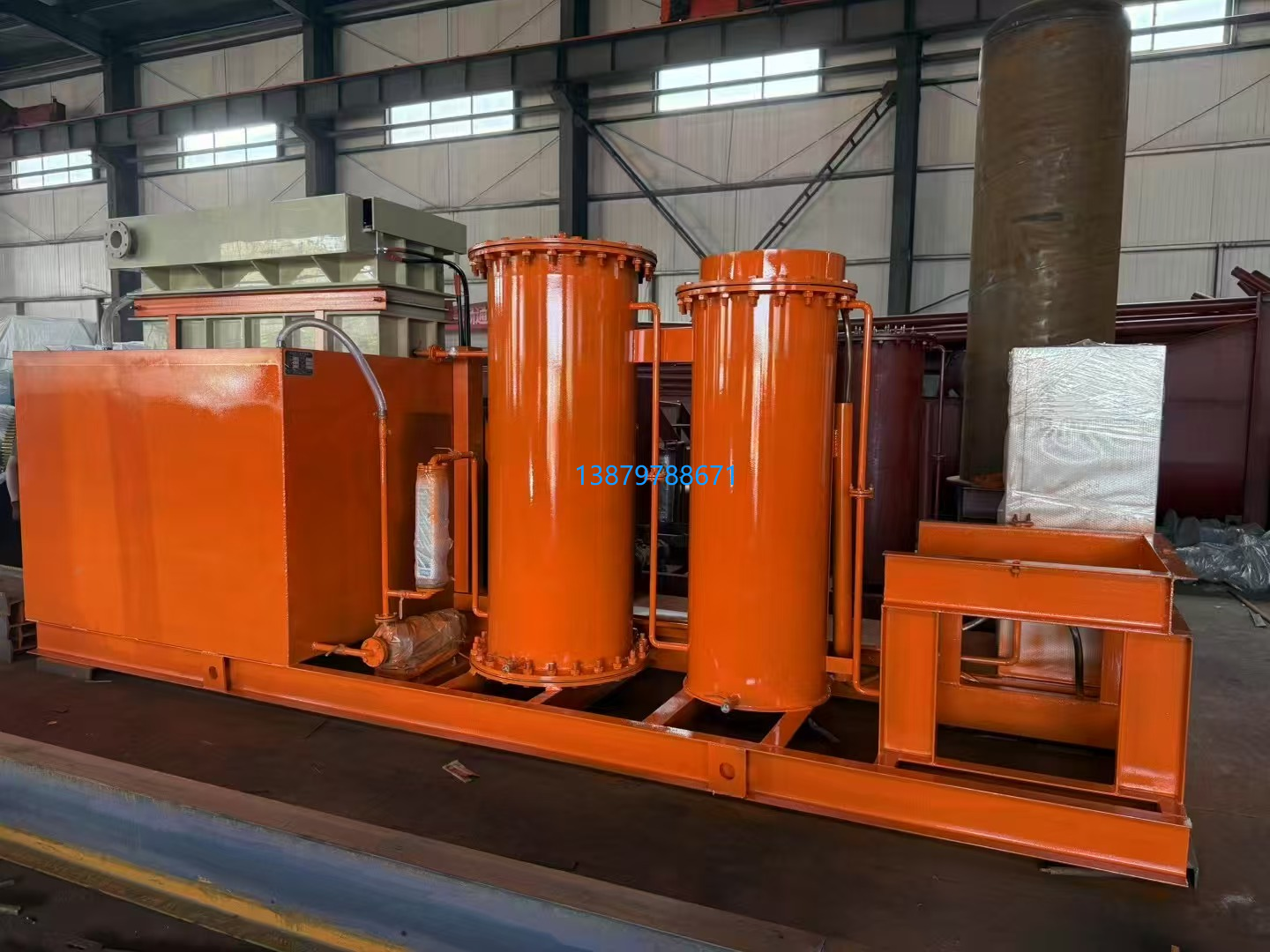

HTHP cyanide free  desorption electrolysis unit is a new style high efficiency product integrated  with new technique and technology that is used to process gold carrier carbon  in gold production. . This unit can perform outstanding desorption function for gold carrier  carbon from gold mine carbon pulp plant and heap leaching plant so as to  produce gold. . This  unit features high degree of automation, advanced technique, high quality  equipment, simple operation and extremely stable, reliable and safe operation  of equipment. . This  product has been sold to over 20 provinces in China  and exported to Russia, Burma, Mongolia  and the Democratic People's Republic   of Korea.

二、產品優點：
II. Product  Advantages:

1、解吸率高

1. High desorption rate.

在高溫（150℃）、高壓（0.45～0.55MPa）、無氰解吸藥劑的條件下解吸，解吸率高（98%～99.8%）。93%以上的我廠用戶貧炭品位在50克/噸以下。

Desorption is performed at high temperature (150 ℃)  and high pressure (0.45~0.55MPa) without cyanide desorption agent at a high  desorption rate (98%~99%).. The grade of barren carbon  of more than 93% of our customers is below 50 g/t.

2、提高吸附率

2. High absorption rate

加到吸附工藝中經過解吸活化的低品位貧炭，能明顯地降低尾液品位，能提高吸附率0.5%～7%。創造出顯著的經濟效益。

The low-grade desorbed and activated barren carbon added to absorption  process can remarkably reduce the tail fluid grade, enabling the absorption  rate to increase by 0.5%~7% so as to create remarkable economic benefit.

3、生產成本低

3. Low production cost

處理每噸載金炭的直接生產成本為290～690元，比其它解吸電解設備能夠降低生產成本65%～85%

The immediate production cost for processing each ton of gold carrier  carbon is 290-690 Yuan, 65%~85% lower than other desorption and electrolysis  plants.

4、生產能力大 4. High production capacity

日處理0.3～10噸載金炭。

0.3~10 tons of gold carrier carbon processed per day.

5、無氰解吸

5. Cyanide free desorption

新型安全無毒的組合解吸藥劑，對任何解吸的載金炭，都必須可取得理想的解吸效果，屬于經色環保工藝。而且此工藝的解吸液能循環利用數十次，節省藥劑和水。只單獨采用NaOH做為解吸藥劑，對大部分礦山的載金炭解吸效果是不理想的。

This new style safe and innoxious combination desorption agent can perform  ideal desorption on any gold carrier carbon and belongs to Environmentally  Friendly process. .  Furthermore, the desorption liquid from this  process can be used in a cyclic way for tens of times so as to save agent and  water. .  For gold carrier carbon from most mines, it  is an ideal method to use NaOH solely as a desorption agent..

6、立式承壓平衡電解槽

6. Vertical pressure balance electrolytic bath

立式承壓平衡電解槽不但電解率高：≥99.99%；而且使解吸電解工藝流程簡明實用，解吸、電解效果好。一個月只打開1～3次的電解槽，采用氣動扳手上卸螺栓，方便，安全可靠；并且此立式電解槽不泄漏含金氣體。立式承壓平衡電解槽具有自動排放金泥系統，杜絕人工操作造成的金泥損失，丟失。

With a high electrolysis rate (≥99.99%), the vertical pressure balance electrolytic bath enables the  desorption and electrolysis process to be concise and practical for better  desorption and electrolysis effectiveness. . Users  just need to open electrolytic bath for 1-3 times by tightening and loosening  the bolts with pneumatic wrench in a convenient, safe and reliable way; in addition,  no gas that contains gold can leak from this vertical electrolytic bath. . This vertical pressure balance electrolytic bath uses an automatic gold  dust discharge system to avoid the dust loss caused by manual operation.

7、貧炭不需要火法熱再生

7. Barren carbon requires no dry heat re-generation

無毒的組合解吸藥劑含有炭活化劑，活化劑對炭起到再生作用。采用此解吸電解工藝，貧炭不需要火法熱再生，杜絕了貧炭火法熱再生造成的炭損失和金損失，節省了炭火法熱再生成本和炭火法熱再生設備投資。

Innoxious combination desorption agent contains carbon activator for  regeneration of carbon. . Thanks to this desorption  and electrolysis technology, barren carbon requires no dry heat re-generation,  avoiding the carbon and gold loss and reducing the cost of re-generation and  re-generation equipment.

8、多臺大型解吸電解裝置（≥2000公斤/批）在生產中取得了效果良好的成功應用。

8. Several large-scale desorption and electrolysis unit (≥2000 kg/batch) have achieved  outstanding results during the production.

9、優異的設備質量

9. Excellent equipment quality

用戶先后選用三套解吸電解設備的共有四家，選用二套的用戶七家；炭漿工藝的黃金礦山選用設備，至今已達十一套。

Among our customers, four have purchased three sets of desorption and  electrolysis plant, and seven have purchased two; up to the present, eleven  sets of equipment have been purchased by gold mines that adopt carbon pulp  technology.

10、高溫高壓解吸電解設備，取代了多臺其它廠家生產的高溫高壓解吸電解設備。

10. Our HTHP desorption and electrolysis plant has superseded several HTHP  desorption and electrolysis plants produced by other manufacturers..

11、采用特種無損自動方式輸送炭，在炭運輸過程中不產生粉炭，不造成炭損失和金損失。

11. Carbon is conveyed by the automatic special non-destructive method.  This conveyance process produces no powder carbon, carbon loss and gold loss.

12、貧炭品位低，炭損又低，能顯著降低粉炭、碎炭造成的金損失；能夠降低選礦生產流程中的黃金積壓量。

12. The low grade and loss of barren carbon can significantly reduce the  gold loss caused by powder carbon and smashed carbon while reducing the gold  backlog in ore dressing process.

13、自動化程度高，工人勞動強度低；在無氰環境內工作，工作環境好。

13. High degree of automation reduces the labor intensity of workers;  cyanide free environment presents good working environment.

高溫高壓無氰解吸電解裝置規格型號

Specification and model of HTHP cyanide free  desorption and electrolysis unit

 除以上規格外，可以根據用戶需要設計制造特殊規格的高溫高壓無氰解吸電解裝置。如：雙解吸柱、雙電解槽、不同加熱方式的高溫高壓無氰解吸電解裝置。

Besides the  above-mentioned specifications, the HTHP cyanide free desorption and  electrolysis unit of special specification can be designed and manufactured  based on user needs. . For example, double-desorption column and double-electrolytic bath HTHP  cyanide free desorption and electrolysis unit using different heating methods.
