·GZG型慣性振動給料機 Vibratory feeder for motor

振動給料機

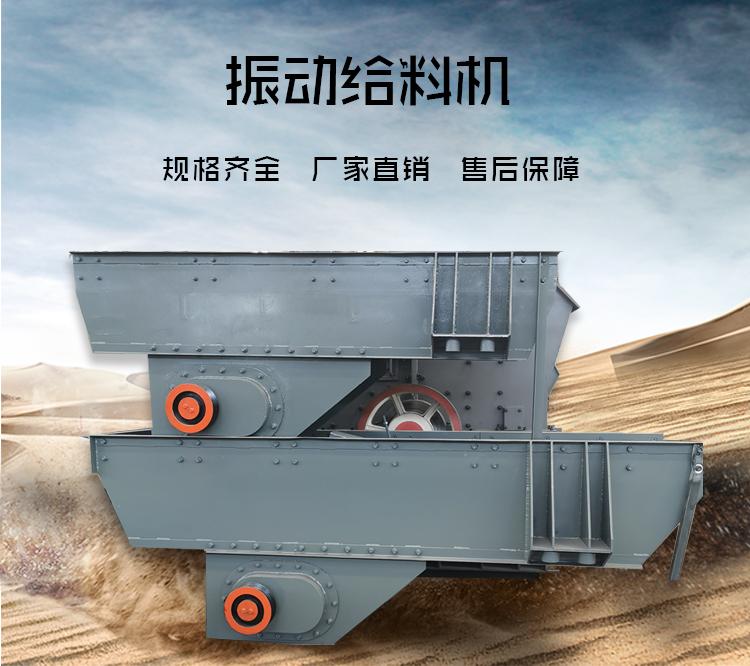

GZG型慣性振動給料機 Vibratory feeder for motor

GZG型自同步慣性振動給料機廣泛用于礦山、冶金、煤炭、建材、輕工、化工、電力、糧食等各行業(yè)，用以把塊狀、顆粒狀及粉狀物料從儲料倉或漏斗中均勻連續(xù)或定量地給到受料裝置中去。例如對破碎、選煤、篩分、運輸、包裝機械等給料、配料等。GZG系列給料機為普通槽型，用于無特殊要求的物料給料。

GZG vibratory feeder for motor are widely used in different industries such as mining, metallurgy, coal, building material, light industry, chemical, power and grain. They convey a given amount of block material, granule material and powdery material from the storage silo or hopper to the material receiving device in an even and uninterrupted way. For example, they feed or distribute materials for crushing, coal preparing, screening, transporting, and packaging machines. GZG series feeders adopt ordinary type of chutes which are used for the feeding of materials for which there is no special requirements.

型號規(guī)格 Model	槽體尺寸	生產率 capacity	給料粒度 Feed size	振動力	功率 Power	重量 Weight
	槽體尺寸	0°-10°	給料粒度 Feed size	振動力	功率 Power	重量 Weight
	mm	t/h	mm	kN	kw	t
GZG403	400×1000×200	30-40	100	2×5	2×0.25	0.17
GZG503	500×1000×200	60-85	150	2×5	2×0.25	0.21
GZG633	630×1250×250	110-150	200	2×10	2×0.5	0.34
GZG703	700×1020×250	120-170	200	2×10	2×0.5	0.36
GZG803	800×1500×250	160-230	250	2×16	2×0.75	0.57
GZG903	900×1483×250	180-250	250	2×16	2×0.75	0.61
GZG1003	1000×1750×250	270-380	300	2×20	2×1.1	0.76
GZG1103	1100×1673×250	300-420	350	2×20	2×1.1	0.82
GZG1253	1250×2000×315	460-650	350	2×32	2×1.5	1.07
GZG1303	1300×2010×300	480-670	500	2×32	2×1.5	1.12
GZG1503	1500×2250×300	720-1000	500	2×50	2×2.25	1.47
GZG1603	1600×2500×315	770-1100	500	2×50	2×2.25	1.56
GZG1803	1800×2325×375	900-1200	500	2×50	2×2.25	2.34
GZG2003	2000×3000×400	1000-1400	500	2×50	2×2.25	2.62
GZG705	700×1029×250	130-180	200	2×10	2×0.7	0.38
GZG805	800×1500×250	170-250	250	2×10	2×0.7	0.48
GZG905	900×1438×250	200-270	250	2×10	2×0.7	0.53
GZG1005	1000×1750×250	290-410	300	2×20	2×1.52	0.62
GZG1105	1100×1673×250	320-450	300	2×20	2×1.52	0.67
GZG1255	1250×2000×315	500-700	250	2×20	2×1.52	0.89
GZG1305	1300×2040×300	620-720	330	2×30	2×2.2	1.15
GZG1505	1500×2250×300	780-1080	500	2×36	2×2.2	1.31
GZG1605	1600×2500×315	330-1190	500	2×36	2×2.2	1.39
GZG1805	1800×2325×375	970-1320	500	2×50	2×3.2	2.26
GZG1256	1250×2000×315	500-700	350	2×30	2×2.2	1.18
GZG1306	1300×2040×300	520-730	350	2×30	2×2.2	1.22
GZG1506	1500×2250×300	780-1080	500	2×36	2×2.2	1.55
GZG1606	1600×2500×315	830-1190	500	2×36	2×2.2	1.6
GZG1806	1800×2325×375	970-1300	500	2×75	2×5.5	3
GZG2006	2000×3000×400	1300-1800	500	2×75	2×5.5	3.3
