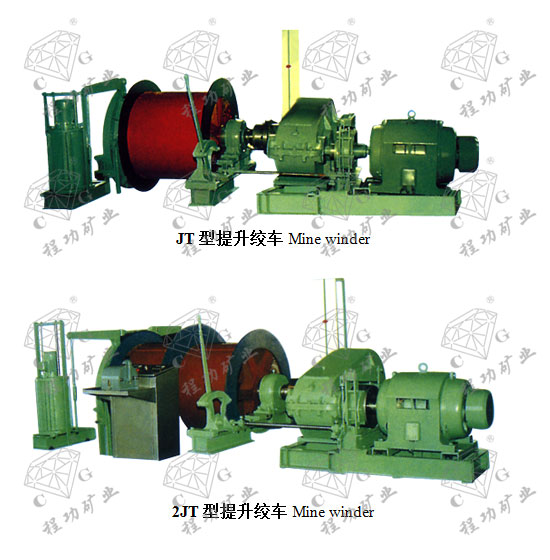

JT型提升絞車 Mine winder
JT型提升絞車可供煤礦、金屬礦及非金屬礦在傾斜巷道作升降物料和人員之用，也可作為小型豎井的提升設備。此外，還可在地下或地面作其它運輸及輔助工作。
JT-型礦用提升絞車主要用于礦井運輸、調車及斜坡提升物料之用。
Series JTMining hoisting winch is used in coal,metal,and non-metal mines for thepurpose of lifting and loweing materiel and personnel in inclined shafts,also is usedas lifting equioment in small shafts.
JTMining hoisting winch is mainiy used for transporting dispatshing cars.and lifting materiel is the inclined shafts.
| 型號規格 Model | ****拉力 Pull | ****拉力差 | 容繩量 Diameter | 卷筒 Drum | 鋼絲繩 Rope | 減速比 | 功率 Power | 重量 weight | ||
| 直徑 Diameter | 寬度 Width | 直徑 Diamete | 速度 Veiocity | |||||||
| KN | KN | m | mm | mm | mm | m/s | kw | kg | ||
| JT-0.6 | 12 | 12 | 400 | 600 | 500 | 14 | 0.83 | 40 | 15 | 1500 |
| 2JT-0.6 | 12 | 10 | 320 | 600 | 400 | 14 | 0.85 | 40 | 15 | 2100 |
| JT-0.8 | 15 | 12 | 480 | 800 | 600 | 15.5 | 1.10 | 30 | 22/30 | 2100 |
| 2JT-0.8 | 15 | 12 | 400 | 800 | 500 | 15.5 | 1.17 | 30 | 22 | 2800 |
| JT-1.0 | 20 | 20 | 600 | 1000 | 800 | 18.5 | 1.70 | 31.5 | 40/45 | 3600 |
| 2JT-1.0 | 20 | 15 | 480 | 1000 | 600 | 18.5 | 1.75 | 31.5 | 37/40 | 4200 |
| JT-1.2 | 30 | 30 | 660 | 1200 | 1000 | 20 | 1.84/2.5 | 28 | 55/75 | 7200 |
| 2JT-1.2 | 30 | 20 | 520 | 1200 | 800 | 20 | 1.84/2.5 | 28 | 45/55 | 8690 |
| JT-1.6 | 45 | 45 | 880 | 1600 | 1200 | 24.5 | 2.0/2.6/3.4 | 24 | 95/110/155 | 13600 |
| 2JT-1.6 | 45 | 30 | 640 | 1600 | 900 | 24.5 | 4.0/3.06/2.4 | 24 | 130/110/95 | 15300 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
