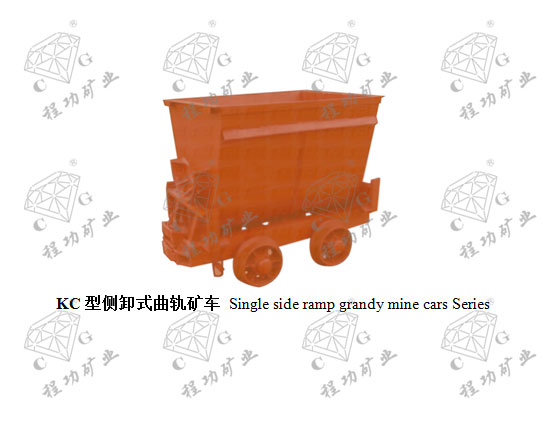

KC型側卸式曲軌礦車 Single side ramp grandy mine cars
國家行業標準JB/T9025
本礦車用于井下及地面運輸各種礦石、煤炭、建筑材料等。用機車牽引、在卸料點設置卸礦曲軌，能自動卸料。
Such mine cars are used in the pit or on the ground to transport various ores, coal, building materials, etc. They are led by locomotives, set ore unloading bent at the emptying point, and can unload materials automatically.
| 型號 規格Model | 容積Volume | 裝載量Loading weight | 軌距Track base | 卸載 角度Unloading angle | 牽引 高度Dragging hight | 牽引力Dragging force | 質量Weight |
| m3 | t | mm | （°） | mm | KN | t | |
| KC0.7-6 | 0.7 | 1.77 | 600 | 40 | 320 | 60 | 0.63 |
| KC1.2-6 | 1.2 | 3 | 600 | 42 | 320 | 60 | 1.03 |
| KC1.6-6 | 1.6 | 4 | 600 | 42 | 320 | 60 | 1.36 |
| KC2-6 | 2 | 5 | 600 | 42 | 320 | 60 | 1.9 |
| KC2-7 | 2 | 5 | 762 | 42 | 320 | 60 | 2 |
| KC2.5-6 | 2.5 | 6.25 | 600 | 42 | 320 | 60 | 2 |
| KC2.5-7 | 2.5 | 6.25 | 762 | 42 | 320 | 60 | 2.1 |
| KC4-7 | 4 | 10 | 762 | 42 | 430 | 60 | 3.2 |
| KC4-9 | 4 | 10 | 900 | 42 | 430 | 60 | 3.3 |
| YCC0.7-6 | 0.7 | 0.75 | 600 | 40 | 320 | 60 | 0.75 |
| YCC1-6 | 1 | 2.5 | 600 | 45 | 320 | 60 | 0.99 |
| YCC1.6-6 | 1.6 | 4 | 600 | 42 | 320 | 60 | 1.45 |
| YCC2A-6 | 2 | 5 | 600 | 45 | 320 | 60 | 2.1 |
| YCC2.5-6 | 2.5 | 6.4 | 600 | 45 | 320 | 60 | 2.45 |
| YCC4-9 | 4 | 10 | 900 | 42 | 320 | 60 | 3.3 |
| YCC6-7 | 6 | 15 | 762 | 45 | 320 | 60 | 6.5 |
我們要求服務人員時刻關注客戶，及時解決設備問題，確保顧客的利益比一切都重要。
