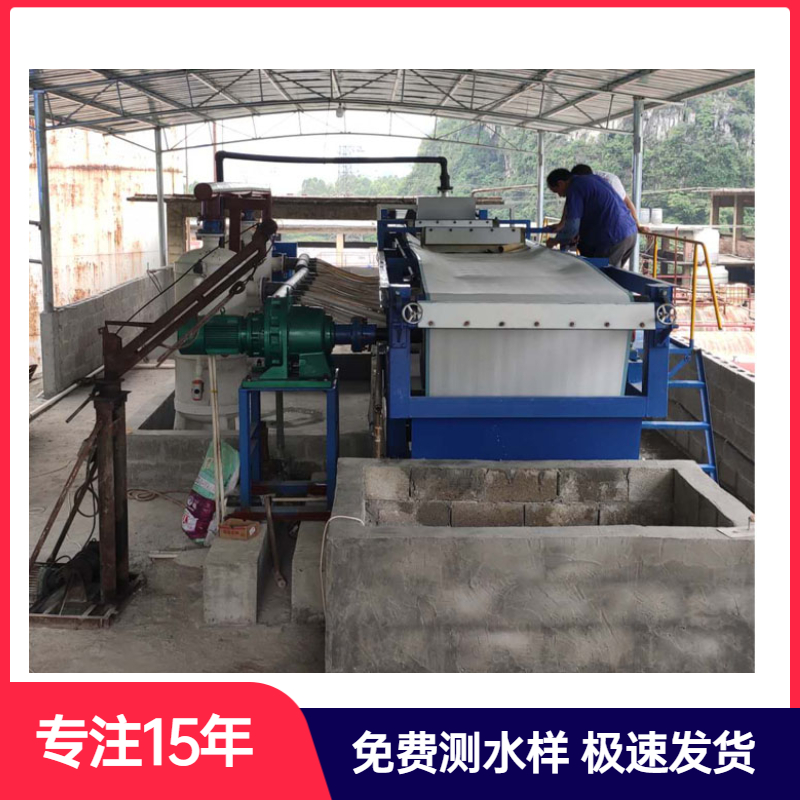

PBF型水平真空帶式過濾機 Horizontal  Vacuum Belt Filter

PBF水平真空帶式過濾機是一種自動化程度高的新型過濾設備，該機以過濾布或?yàn)V網為介質，使料漿水平布置于過濾介質之上，充分利用料漿重力和真空吸力實現固液分離。連續水平真空帶式過濾機可適用于多種濃度條件下的物料，過濾效率高，因而被諸多工業部門優先采用。

PBF horizontal vacuum belt filters are a kind of highly automatic  new filtering equipment. Such equipment takes filter cloth or filter screen as  the medium to get the slurry to be horizontally placed on the filtration  medium. It fully utilizes the gravity of slurry and pull of vacuum to realize  solid-liquid separation. Horizontal vacuum belt filters apply to materials of  various concentrations. Its filtration efficiency is high. Thus, they are used  by many industrial sectors.

特點:

Characteristics:

喂料、過濾、洗滌、脫渣、濾布再生可連續自動完成，自動化程度高。

Feeding, filtering, washing, deslugging, and filter cloth  recycling can be finished continuously and automatically. It is highly  automatic.

可對物料進行多級平流或逆流洗滌，過濾液（母液）和洗滌液可分開集液。

Multistage smooth current or countercurrent washing can be done to  materials. The filtrate (mother liquid) and washing liquid can be received  separately.

對過濾性差，粘度高的物料，可實現薄層快速過濾。

Thin-layer and rapid filtration can be realized for materials with  poor filterability and high viscosity.

模塊式設計，可靈活組合，適應性強。

It is of modular design, can be flexibly configured, and has  strong adaptability.

采用PLC控制，便于遠程及集中控制。

It adopts PLC control, easy for remote and centralized control.

采用蛇形糾偏，解決了濾布的跑偏及打折。

It rectifies deviation in a snake shape and avoids deflection and  folding of filter cloth.

典型工藝圖:  Typical Flow Chart:

A、加料裝置 H、真空泵 G、返水泵 F、排液分離器 E、切換閥 D、洗布裝置 C、糾偏裝置 B、洗滌裝置

A. Feeding device  H.  Vacuum pump  G. Return water  pump  F. Drain separator  E. Switch valve  D. Cloth washing device  C. Corrective device  B. Washing device

應用實例表: Application  Scope:

技術參數:

應用范圍:

Application Scope:
