一、產品簡介

I. Product Profile

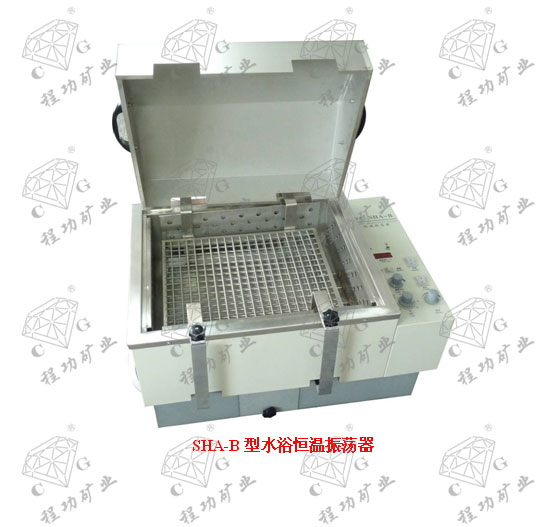

水浴恒溫振蕩器（又稱水浴恒溫搖床）是一種溫度可控的恒溫水浴槽和振蕩器相結合的生化儀器，是植物、生物、微生物、遺傳、病毒、環保、醫學等科研、教育和生產部門作精密培養制備不可缺少的實驗室設備。

Water-bathing constant temperature vibrator (also known as water-bathing constant temperature shaking bath), as a biochemical instrument combining temperature controlled constant temperature water bath with vibrator, is an essential laboratory equipment for scientific research and education on plants, biology, microbiology, genetics, viruses, environmental protection and medicine and the precision cultivation by production sectors.

二、主要特點

II. Main Features

1、溫控精確，數字顯示；2、振蕩時小浪花，無浪花飛濺；3、設有機械定時；4、萬能彈簧試瓶架特別適合多種對比試驗的生物樣品的培養制備；5、無級調速，運轉平穩，操作簡便安全；6、內腔采用不銹鋼制作，抗腐蝕性能良好。

1. Accurate temperature control and digital display; 2. Small waves or no waves during vibration; 3. Mechanical timer is provided; 4. Universal spring test bottle rack is particularly applicable to the cultivation and preparation of biological samples for various contrast tests; 5. Stepless speed regulation, smooth and stable running, easy and convenient operation; 6. Internal cavity is made of stainless steel with perfect corrosion resistance.

三、技術指標

III. Technical Parameters

型號：SHA-C、 THZ-82、 SHA-B
溫控范圍：室溫-100℃
溫控精度：≤±0.5℃
加熱功率：1800W （微電腦型1000W）
振蕩頻率：起動-300次/分（可帶測速數字顯示）
振蕩功率：100W
振 幅：20㎜（有往復、回旋或雙功能）
定時范圍：0-120分（或常開）
裝瓶量：（三角燒杯）100ml×15只 250ml×12只 500ml×7只
工作電源：AC220V 50Hz

Model: SHA-C, THZ-82, SHA-B
Temperature control range: room temperature – 100℃
Temperature control accuracy: ≤±0.5℃
Heating power: 1800W (1000W for microcomputer-type)
Oscillation frequency: start – 300 times/min (digital display for speed determination is available)
Oscillation power: 100W
Amplitude: 200mm (reciprocating, rotary or dual-function)
Range of timing: 0-120 min (or normally opened)
Bottling capacity: (triangle beaker) 100ml×15 250ml×12 500ml×7
Power supply: AC220V 50Hz
