一、用途

I. Application

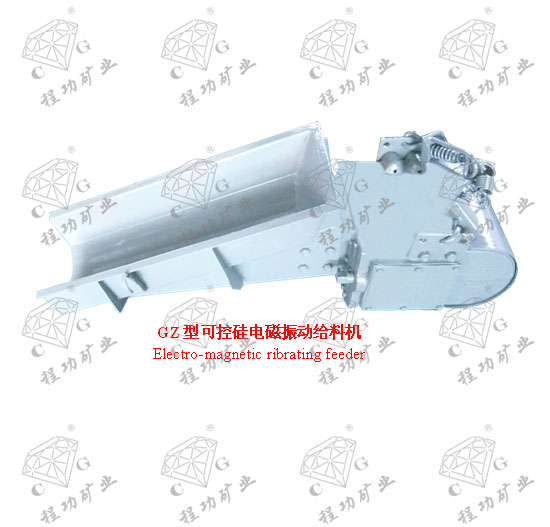

GZ型系列可控硅電磁振動給料機是一種較新型的定量給料設備，廣泛應用于冶金、礦山、建材、化工、輕工、醫藥、電力、煤炭、機械等各行各業。用于把塊狀、顆粒及粉狀物料，從貯料倉或漏斗中均勻、連續或定量地給到受料裝置中去。例如向帶式輸送機、斗式提升機、篩分設備等給料，向破碎機、粉碎機喂料，以及用于自動配料、定量包裝等，并可用于自動控制的流程中，實現生產流程的自動化。本產品由原地礦部唯一指定企業生產，執行行業標準。

GZ Series Controllable Silicon Electromagnetic Vibrating Feeder is a new model of quantitative feeding equipment and has found wide applications in metallurgical,mine, building material,chemical, light, pharmaceutical, electrical power, coal, mechanical and other industries. It is used for uniformly and continuously or quantitatively feeding massive, granular and powdered materials in silo or hopper into material receiver and delivering materials to belt conveyor, bucket elevator, screening machine, crusher, grinder,etc. as well as in automatic ingredient system and quantitative packaging. It also can be applied in the automation process to achieve automation of production line. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

二、特點

II. Features

1、運用機構共振原理，雙質體在低臨界近共振狀態下工作，消耗電量少,節能效果好。

1. By adopting the mechanism resonance principle, the double masses work in a lower critical near resonance state which requires lower power consumption and contributes to outstanding conservation effect.

2、給料均勻，產量于調節。

2. Uniform feeding facilitates the regulation of output.

3、體積小，重量輕，安裝方便，無轉動部件，不需潤滑，維修方便，運行費用低，但帶有較大粘滯性的濕粉狀物料不宜選用。

3. Small in size, light in weight, convenient installation, no rotatable parts, lubrication not required, convenient maintenance, low operating cost, not suitable for wet powder materials of high viscosity.

4、物料在料槽中呈拋物向前跳躍推進，幾乎不在料槽表面滑動，故料槽磨損較小。

4. Materials leap forward parabolically in the chute, but not slide on chute surface; hence, the chute suffers less wear.

5、可以輸送低于300℃的灼熱物料。

5. The conveyance of hot material lower than 300℃ is available.

三、技術參數

Ⅲ. Technical Parameters

注：① 給料能力系料槽水平安裝，物料比重為1.6噸/米3時的設計指標。料槽下傾10° ，給料能力增加40%。

Note: ① Feeding capacity is the design index when the chute is horizontally mounted and the density of material is 1.6 t/m3. The feeding capacity will increase by 40% when the chute declines by 10°.

② GZIF ～GZ5F 封閉型電振機的給料能力為表列數值的80%，物料****粒度為表列數值的80%，料槽下傾10°給料能力再增加40%。

② The feeding capacity of enclosed electric vibrator models GZIF~GZ5F is 80% of the capacity listed in table. The maximum particle size of material is 80% of the size listed in table; The feeding capacity will increase by 40% when the chute declines by 10°.
