試驗室2XZ型旋片式真空泵技術參數 Technical Par

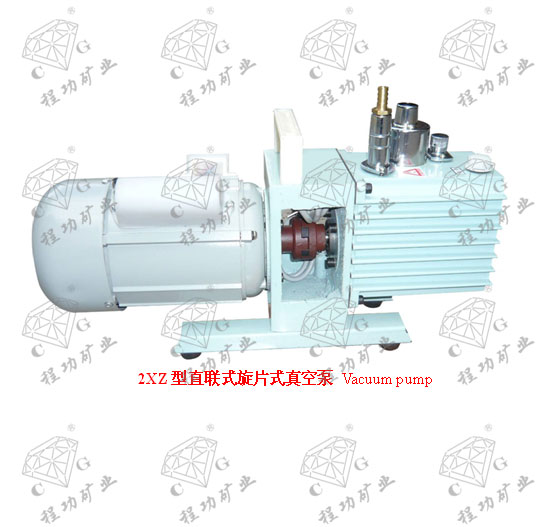

2XZ型旋片式真空泵系雙級高速直聯旋片式真空泵。本泵是用來對密封容器抽除氣體而獲得真空的基本設備，它可單獨使用，亦可作為各類高真空系統的前級泵和預抽泵。本產品由原地礦部唯一指定企業生產，執行行業標準。

該系列泵具有低噪聲、停泵不返油、啟動容易等優點，泵上裝有氣鎮閥，可抽除少量的可凝性蒸汽。本泵不能抽除含氧過高的，腐蝕性的，有爆炸性的或有毒的，以及含有顆粒塵埃的氣體，也不能作壓縮泵、輸氣泵使用。

本系列泵適用于工業部門、科研和高等院校使用，是各種真空作業系統不可缺少的基本設備。

2XZ Rotary-vane Vacuum Pump is a double-stage high speed direct coupled rotary-vane Vacuum pump. It is a basic device to obtain vacuum by pumping gases for sealed vessel and can be in operation alone. It also can serve as forepump and prepump. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

It features low noise, no oil return on shutdown, easy start-up and other advantages with gas ballasting valve available to remove minor condensable steam. However, it is unable to pump high oxygen , corrosive, explosive or toxic gases and grain or dust bearing gases and can’t be used as compression pump and air transmission pump.

It is suitable to be applied in industrial sectors, research institutions and institutes of higher learning and is a basic device indispensable to vacuum operation systems.

型號規格 Model		單位Uite	2XZ-0.25	2XZ-0.5	2XZ-1	2XZ-2	2XZ-4( 4C)	2XZ -8C
抽氣速率Pamping rate		L/S	0.25	0.5	1	2	4	8
極限壓力Vaccum limit		Pa	6×10^-1	6×10^-2
轉速Rtating speed		r/min	1400
電壓 Voltage		V	220			220/380		380
電機功率 Power		kw	0.12	0.18	0.25	0.37	0.55	1.1
進氣口內徑 Diameter		mm	10	16		25		40
用油量Useing oil		L	0.40	0.50	0.55	0.65	0.8	1.8
泵油溫升Oil temperature		℃	≯40			≯45		≯65
外型尺寸 Overall dimensions	長	mm	400	445	467	488	528	575
	寬	mm	125	130		145	145	172
	高	mm	240	254		280	280	350
質量 Weight		kg	15	18	19	27	29	50
注：1、在正常情況下，泵的幾何抽速為等于名義抽速的1~1.2倍。2、在正常情況下，泵的最高工作溫度是最高環境溫度與泵自身最高溫升的和。
