一、用途

Ⅰ.Use

實驗室用XFLB微型連續浮選機，是用少量代表性礦樣進行連續浮選機選試驗，試驗結果能代表實驗室單機小型閉路實驗和半工業試驗的結果，并能在較短時間內提供實驗室用或半工業性用的選礦指標。

XFLB微型連續浮選機是自吸式機械攪拌連續浮選機，它是不需要或需要很少量輔助設備，設備配置方便可調，完成有色金屬、黑色金屬和非金屬的選礦實驗。

Lab-used Miniature Continuous Flotation Machine is applied in test of continuous flotation of minor representative samples with its test result being able to represent the results of lab. and pilot plant tests for individual unit in a small close circuit and making available mineral processing indexes for lab. and pilot plant production.

XFLB Miniature Continuous Flotation Machine is self-suction agitated continuous flotation machine with no need or need of small amount of auxiliary equipment ,and configured equipment convenient and adjustable. It can be used for conducting tests on non-ferrous , ferrous and non-metallic minerals.

二、XFLB型閉路連續浮選機的設備組成

II. Parts

儲漿捅1臺 攪拌桶2臺 微量給藥機1臺 膠管泵2臺

連續浮選機：1升8槽1臺 0.75升4槽 1臺 0.5升2槽1臺

Slurry storage drum: 1; agitating drum: 2; micro reagent feeding machine: 1; squeegee pump: 2

Continuous flotation machine: 1 liter 8 cells 1; 0.75 liter 4 cells 1; 0.5 liter 2 cells 1

三、結構簡介

III. Structure

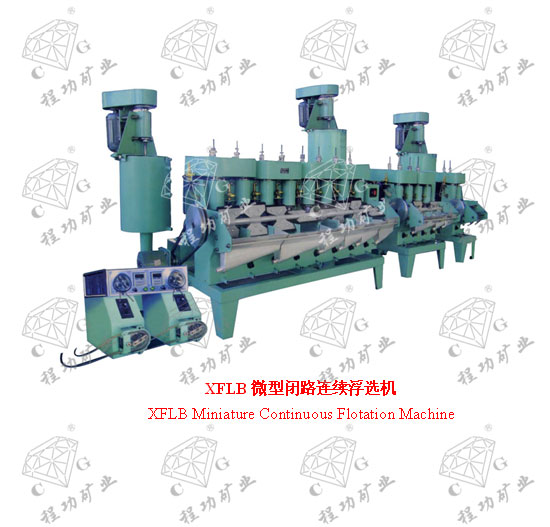

實驗室用XFLB型閉路連續浮選機主要有由儲漿捅、攪拌桶、微量給藥機膠管泵和1升、0.75升、0.5升連續浮選機組成。

Laboratory XFLB continuous flotation machine are mainly composed of slurry storage drum, agitating drum, micro reagent feeding machine, squeegee pump, and continuous flotation machines of 1 liter, 0.75 liter, and 0.5 liter.

儲漿捅是用來儲存磨制調好的礦漿，采用葉輪攪拌使其不沉淀。

The slurry storage drum is used to store the already grinded and conditioned slurry which does not precipitate through the agitation of impeller.

攪拌桶通過輪旋轉攪拌，使礦漿均勻，礦漿自儲漿桶流向攪拌桶和浮選機，其流量大小靠改變流道面積來實現。

The agitating drum is agitated through the rotation of wheels to keep the slurry even. The slurry flows to the agitating dram and flotation machine from the slurry storage drum. The change of its flow is realized through the change of flow area.

這種連續浮選機具有自吸能力強，充氣量大等特點，礦漿的流動，泡沫產品的流動和空氣的吸入是靠葉輪旋轉來形成負壓造成的中礦的返回為可適當加膠管泵。液面調整靠伸縮管，改變伸縮管的長度，即可調整液面高度,調整方便不堵塞。

Such continuous flotation machine has characteristics such as strong suction capacity and large aeration quantity. The flow of slurry and froth products and suction of air are realized through the rotation of impeller. In case of middling return caused by negative pressure, squeegee pump can be added according to actual conditions. Extension tube is needed for the adjustment of liquid level. Change the length of extension tube and the height of liquid level can be adjusted. It is easy to make adjustment without any blockage.

給藥機供給浮選用輔吸劑起泡劑及調整劑。

The reagent feeding machine supplies suction supporting agent, foaming agent, and regulating agent for flotation purpose.

四、技術參數

注：整機配套：儲漿捅1臺、攪拌桶2臺、微量給藥機1臺、膠管泵2臺、連續浮選機： 1升8槽1臺、 0.75升4槽1臺、 0.5升2槽1臺，如用戶需要特殊組合時另行提出。

Note: The whole machine includes: Slurry storage drum: 1; agitating drum: 2; micro reagent feeding machine: 1; squeegee pump: 2; continuous flotation machine: 1 liter 8 cells 1; 0.75 liter 4 cells 1; 0.5 liter 2 cells 1. The user shall apply for other combination of such whole machine.
