一、用途和簡介

I. Application and Description

實驗室用充氣多功能浸出攪拌機可供地質、冶金、建材、化工等礦山和科研機構實驗室用于濕法浸出攪拌等。

Laboratory multi-functional air inflation leaching-out tanks can be used for wet leaching-out agitation in mines of geology, metallurgy, building material, chemicals, and other sectors, and laboratories of scientific institutes

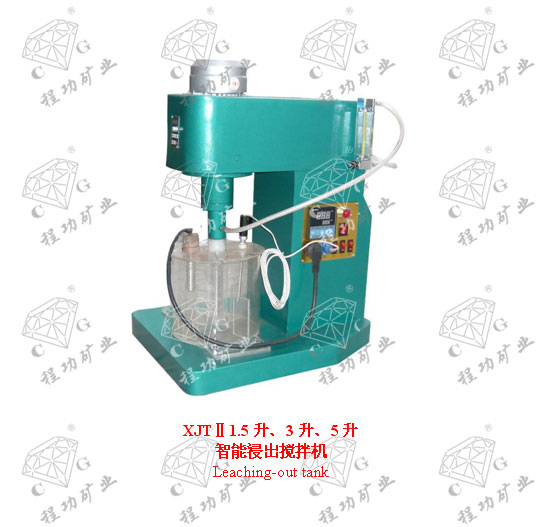

充氣多功能浸出攪拌機XJTⅡ是XJT更新?lián)Q代產品。它采用外充氣，模擬現場更為實際。還采用變頻技術，葉輪無級調速，數碼顯示，調整精確。還裝有溫度控制儀，隨時顯示槽內礦液溫度。配上加熱器可加熱、控制礦液溫度。

XJT II Multi-functional air inflation leaching-out tank is the regeneration product of XJT leaching-out tank. It inflates air from outside. Its simulated field is more practical. Besides, it adopts frequency conversion technology, stepless speed regulation of impeller, digital display, and accurate adjustment. Besides, it is equipped with temperature control meter which displays the temperature of ore liquid in the tank at any time. Coupled with heater, it can heat and control the temperature of ore liquid.

充氣多功能浸出攪拌機XJTⅡ即保存XJT浸出攪拌機性能，又增加了外充氣功能。取下循環筒，安上上葉輪即是浸吸槽，與礦山上的吸附槽相同。

XJT II Multi-functional air inflation leaching-out tank not only inherits the performance of XJI leaching-out tank, but also has its new function, i.e. outside air inflation. Remove the recirculation drum and install impeller and the leaching tank is formed which is the same with the adsorption tank in mines.

二、結構和原理

II. Structure and Working Principle

該攪拌機由下列部件組成：主軸傳動部件、機架部件、外充氣部件、攪拌槽、循環筒、翻轉裝置、和電器控制等部件組成。

Such leaching-out tank is compose of main shaft drive parts, frame part, outside air inflation part, agitation tank, recirculation drum, turnover mechanism, electric controllers, etc.

攪拌機靠本身轉子高速旋轉，離心力將轉子中間液體甩出，由氣泵吸入大量空氣生成微小礦化氣泡。

Its working principle is: The leaching-out tank rotates at a high speed through its rotor; the liquid among the rotor is flicked out under the action of centrifugal force; and the air pump sucks a large amount of air to produce small mineralized bubbles

轉子的轉速是無級變速的，可通過變頻器來調整。

The rotating speed of rotor is stepless and variable which can be adjusted through frequency converter.

三、技術參數

Ⅲ. Technical Parameters

型號規格 Model		XJT
容積 Volume	L	1.5、3、5
葉輪轉速 Impeller diameter	r/min	0-2000
葉輪直徑 Impeller speed	㎜	31、39、48
功率 Power	w	120
給礦粒度 Feed size	㎜	0.05-0.2
外形尺寸  Overall Dimensions	㎜	450×340×475
給氧泵 Pump		AT-A9500
質量 Weight	kg	21
