試驗室XJT、XDT型調漿桶、攪拌槽技術參數 Tech

XJT（XDT）攪拌槽適用于各行業實驗室濕法攪拌漿體物料，使礦粒懸浮并與藥劑充分接觸，混勻，為選別作業創造條件。

Agitating tank is suitable for labs in industries to wet agitate slurry materials, allowing ore particles to suspend and to fully contact with reagent before being mixed evenly and creating conditions for separating operation. Leaching tank is used for wet leaching agitation with central aeration, stepless adjustment of inverter and other features.

XJT（XDT）型試驗室攪拌槽適用于各種礦漿浮選前的攪拌，使藥劑與礦漿充分混合，也可用于化工，環保等行業的機械攪拌。

XJT (XDT) laboratory agitating and leaching tank applies to the agitation of various kinds of slurry before flotation, to allow thorough mixing of reagent and slurry. It can also be used for mechanical agitation in industries such as chemicals and environmental protection.

攪拌槽的適用范圍，濃度不大于45%（按重量計算），固體成份的粒度小于1mm。

Applicable scope of agitating and leaching bank: concentration – not larger than 45% (by weight); granular size of solid content – less than 1mm

型號規格 Model	槽體容積 Volume of tank	桶體尺寸 Size of tank	葉輪直徑 Impeller Diameter	葉輪轉速 Impeller speed	功率 Power	外形尺寸 Overall dimensions	質量 Weight
型號規格 Model	L	mm	mm	r/min	W	mm	kg

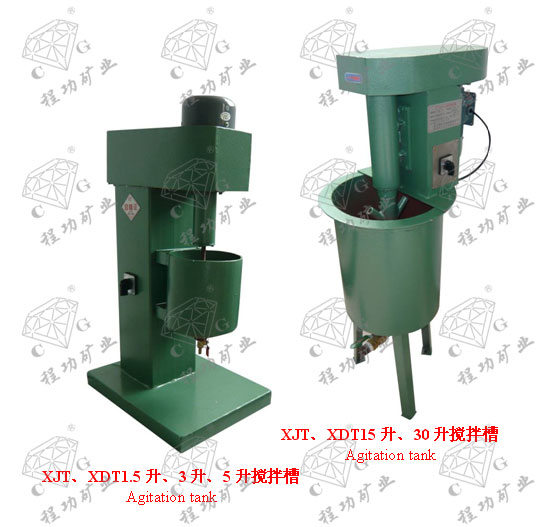

XJT（XDT）1.5升	1.5	Φ130×157	Φ31	950	180	304×505 ×633	30
XJT（XDT）3升	3	Φ164×193	Φ39	1400	180	304×505 ×633	35
XJT（XDT）5升	5	Φ190×190	Φ48	1750	180	304×505 ×633	40
XJT（XDT）10升	10	Φ240×300	Φ64 Φ116	1600	550	350×550 ×700	43
XJT（XDT）15升	15	Φ246×348	Φ64 Φ116	1200-1500	550	480×329 ×910	45
XJT（XDT）30升	30	Φ296×448	Φ64 Φ128	1200-1500	750	560×388 ×960	63
XJT（XDT）50升	50	Φ368×510	Φ120	1200-1500	750	400×400 ×1500	75
XJT（XDT）100升	100	Φ488×600	Φ150	1200-1500	1100	540×540 ×1600	90
XJT（XDT）130升	130	Φ500×750	Φ150	1000	1500	720×720 ×1670	150
XJT（XDT）160升	160	Φ500×1000	Φ150	600	1500	930×930 ×2016	186
XJT（XDT）300升	300	Φ750×750	Φ200	600	1500	1180×1180 ×1766	297
XJT（XDT）Ⅱ智能調漿桶、攪拌槽，浸出槽是更新?lián)Q產品，具有變頻調速及溫控裝置等特點（溫度＜ 100℃）。 XJT（XDT）ⅡSlurry Conditioning Drum, Agitating and Leaching Tanks are updating products with speed governing by frequency conversion, temperature (temperature ＜ 100℃)control device and other features. XJT（XDT）Ⅱ型試驗室攪拌槽是XJT型實驗室攪拌槽更新?lián)Q代產品，具有自動溫控（< 100℃）功能，溫度實時數字顯式，誤差< 0.5℃。XJTⅡ 5L型以下具有變頻調速功能，槽體為懸掛式，方便拆下清洗。（根據用戶需要，可增加耐酸堿防腐蝕、中心軸充氣等功能，采購本產品時一定要加以注明。） XJT (XDT) II laboratory agitating and leaching tank is the regeneration product of XJT laboratory agitating and leaching tank which is equipped with the function of automatic temperature control (<100℃). It allows real-time digital display of temperature with the error <0.5℃. The XJTⅡ5L one has the function of speed regulation by frequency variation. The tank is of suspension type, easy for dismantling and washing. Functions such as acid and basic resistance, and anti-corrosion as well as air inflation of central shaft can be added according to the needs of users. If so, it must be indicated during the purchase of this product. XJT（XDT）Ⅱ型試驗室攪拌槽適用于各種礦漿浮選前的攪拌，使藥劑與礦漿充分混合，也可用于化工，環保等行業的機械攪拌。 XJT (XDT) II laboratory agitating and leaching tank applies to the agitation of various kinds of slurry before flotation, to allow thorough mixing of reagent and slurry. It can also be used for mechanical agitation in industries such as chemicals and environmental protection. 攪拌槽的適用范圍，濃度不大于45%（按重量計算），固體成份的粒度小于1mm。Applicable scope of agitating and leaching bank: concentration – not larger than 45% (by weight); granular size of solid content – less than 1mm.
型號規格 Model	槽體容積 Volume of tank	桶體尺寸 Size of tank	葉輪直徑 Impeller Diameter	葉輪轉速 Impeller speed	功率 Power	外形尺寸 Overall dimensions	質量 Weight
型號規格 Model	L	mm	mm	r/min	W	mm	kg
XJT（XDT）1.5Ⅱ升	1.5	Φ130×157	Φ31	0-2600	180	450×340 ×575	30
XJT（XDT） 3Ⅱ升	3	Φ164×193	Φ39	0-2600	180	450×340 ×575	35

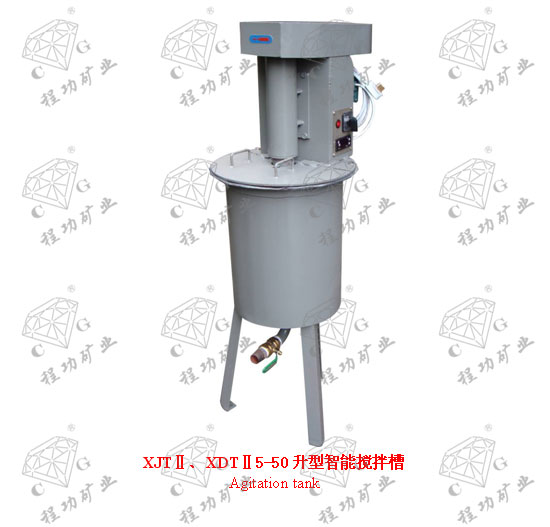

XJT（XDT） 5Ⅱ升	5	Φ190×190	Φ48	0-2600	180	450×340 ×575	40
XJT（XDT）15Ⅱ升	15	Φ246×348	Φ64 Φ116	1200-1500	550	480×329 ×910	45
XJT（XDT）30Ⅱ升	30	Φ296×448	Φ64 Φ128	1200-1500	750	560×388 ×960	63
XJT（XDT）50Ⅱ升	50	Ф368×510	Φ120	1200-1500	750	400×400 ×1500	75

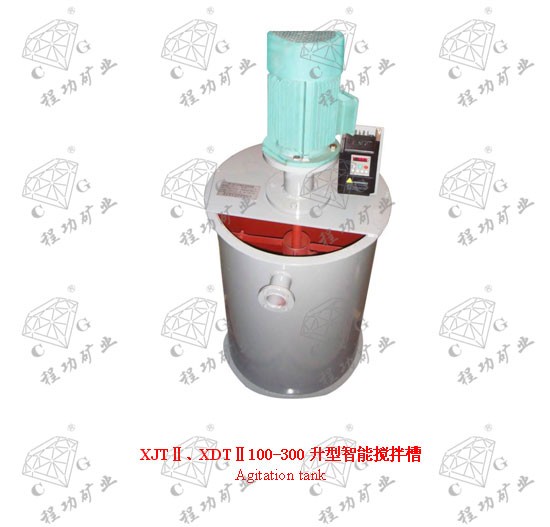

XJT（XDT）100Ⅱ升	100	Ф488×600	Φ150	1200-1500	1100	540×540 ×1600	90
XJT（XDT）130Ⅱ升	130	Φ500×750	Φ150	1000	1500	720×720 ×1670	150
XJT（XDT）160Ⅱ升	160	Φ500×1000	Φ150	600	1500	930×930 ×2016	186
XJT（XDT）300Ⅱ升	300	Φ750×750	Φ200	600	1500	1180×1180 ×1766	297
