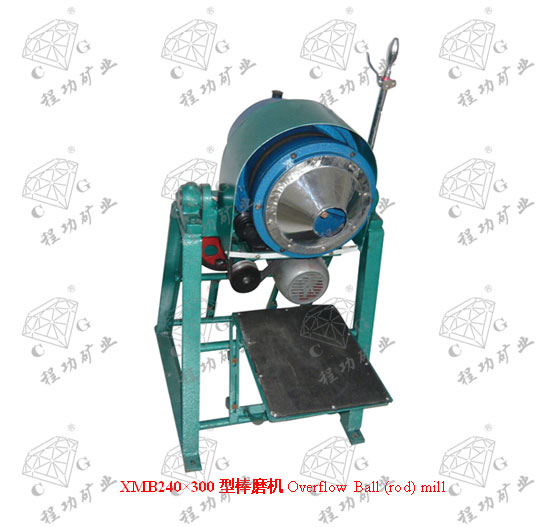

XMQ棒磨機適用于實驗室濕法磨細礦石或其他物料之用。也可以將鋼棒換為鋼球作球磨機使用。但棒磨時，磨細產物粒度組成較均勻，過粉碎現象較小，且效率較高。一般進行礦石可選性實驗研究和人工重砂磨細礦石時，宜采用棒磨。本產品由原地礦部唯一指定企業生產，執行行業標準。

XMB Rod Mill is applicable to lab. for wet fine grinding of ore and other materials. Steel ball may be used instead of steel rod in the ball mill. In rod grinding, fine product particle fractions are relatively uniform with rare occurrence of overgrinding and high efficiency. In general, rod grinding is introduced for test on ore for separability and manual fine grinding of placer materials. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

球墨鑄鐵筒體與大皮帶輪用螺釘聯為一體。筒體一端為開口，另一端為空心軸頸；兩端分別承在一對托和一個主軸承上。主軸承座和托架，分別裝在可轉支180°的支承板上。支承板用兩個軸承軸承座裝在機架上。支承通過回轉操縱手把及定位板，可以從水平左右偏轉用22.5°、6735°、及90°，以完成裝礦、排礦、倒棒和充滿防銹石灰水等動作。

Drum of spheroidal graphite cast iron and big belt pulley are connected through screws. At one end of the drum is an opening and at the other end of it is a hollow journal. Both ends are respectively supported on a pair of rollers and a main bearing. The main bearing seat and bracket are respectively on the bearing plate which can rotate for 180°. The bearing plate is installed on the frame with two bearing pedestals. The bearings control the handle and positioning plate through rotation. Horizontal deflection of 22.5°, 6735° and 90°can be applied to realize ore loading, ore discharging, tamping rod, filling antirust limewater, etc.

筒體右端有給礦口塞。械端有排礦口蓋；工作時，用一時專門板手，按順時針方向擰緊螺栓，使排礦口蓋上的密封橡膠墊緊螺栓三、四轉使蓋子向外退出工6～10毫米，不用將蓋子取下即可排礦。在排礦口端安設了集漿罩。在設計工作轉速內完全消除子轉支清洗時礦漿飛濺的現象。

There is plug of feed mouth on the right of the drum and there is cover of discharge mouth at the end of the machine. During the operation of the machine, use a special-purpose spanner to tighten the bolts, to get the sealing rubber gasket on the cover of discharge mouth to tighten the bolts for three or four rounds so that the cover can go backward for 6～10mm. Ores can be discharged without the cover being removed. At the end of the discharging mouth is installed a slurry cover, which completely avoid splashing of slurry during the washing rotating branch within the designed working speed.

電機及中間軸裝在支承下面，以便與上部的重量配置均衡。傳動的兩級皮帶每級均可調節皮帶松緊，以保證全適的磨礦工作轉速。

The motor and intermediate shaft are installed below the bearings, so as to realize balance with the weight above. The tension of belt can be adjusted for every grade of the driving two-grade belt pulley, to ensure appropriate grilling speed.

67型棒磨機的皮帶調整，是由支承板上T型槽滑道和中間軸座板上的長分別進行。

The pulleys of 67 rod mill are respectively adjusted through the T-groove slide on the supporting plate and the slot on the seat board of the intermediate shaft.

68型棒磨機的皮帶調整，按下述方法進行：

The pulleys of 68 rod mill are respectively adjusted according to the following method:

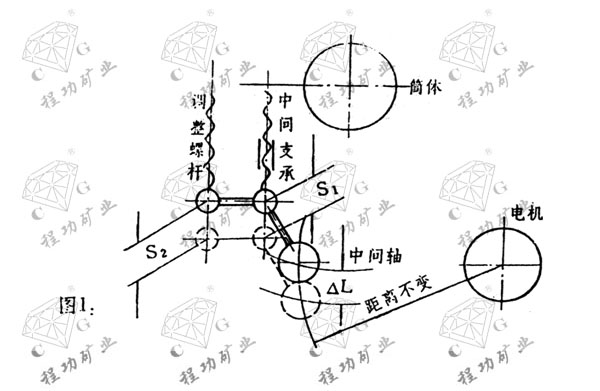

1、筒體皮帶的調整：主要是調節中間支承的上下位置。但為了不致景響電動機皮帶的松緊，須對調整螺桿作相應的調整（圖1）。

1. To adjust drum belt, what should be done mainly includes the adjustment of vertical position of intermediate support. However, in order not to affect the tension of motor belt, corresponding adjustment shall be made of the adjusting bolt (Figure 1).

△L—需要調整量（圖示需調緊）

△L — Required adjustment amount (needing to tighten as is shown in the figure)

S1—中間支承調整量（圖示向下）

S1 – Adjustment amount of intermediate support (moving downward as is shown in the figure)

S2 —調整螺桿調整量（圖示向下）

S2 – Adjustment amount of adjusting bolt (moving downward as is shown in the figure)

2、電動機皮帶的調整：主要是調節調整螺桿的上下，使中間軸繞中間支承轉支一定位置。而為了不致影響筒體皮帶的松緊。須對中間支軸承相應的調整，進行補償。（圖2）

2. To adjust motor belt, what should be done mainly includes the adjustment of vertical position of screw, to get the intermediate shaft to revolve around intermediate support to a certain position. However, in order not to affect the tension of drum belt, corresponding adjustment shall be made of the intermediate shaft for compensation (Figure 1).

筒體：Drum
調整螺桿：Adjusting bolt
中間支承：Intermediate support
中間軸：Intermediate shaft
距離不變：Unchanging distance
電機：Motor

△L—需要調整量（圖示需調緊）

△L — Required adjustment amount (needing to tighten as is shown in the figure)

S1—中間支承調整量（圖示向下）

S1 – Adjustment amount of intermediate shaft (moving downward as is shown in the figure)

S2 —調整螺桿調整量（圖示向下）

S2 – Adjustment amount of adjusting bolt (moving downward as is shown in the figure)

為適應多種接礦容器的使用，折疊式接礦滑架，可以上下升降使用。機器的電器均已安裝好，接上電源和地線，即可按使用要點開車運轉。

To match the use of various kinds of receiving containers, folding receiving carriage can move upward or downward. The electric equipment of the machine has been installed. When the power and earth wire are connected, the machine can be operated according to instructions.
